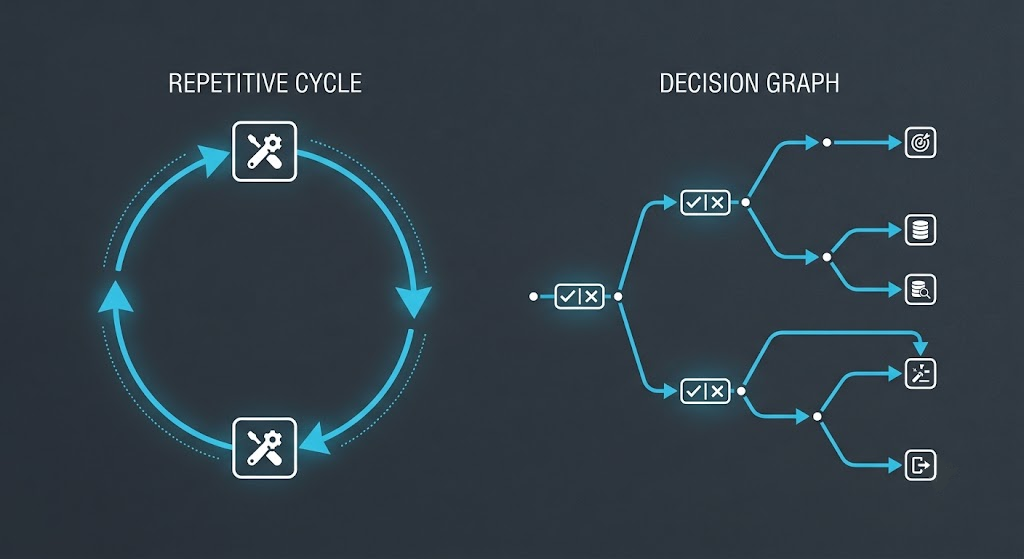

Graph engineering replaces loop prompting. Structuring AI workflows into typed, observable nodes turns opaque agent turns into verifiable pipelines.

Mechanics of Graph Engineering

Graph engineering decomposes complex systems into discrete processing nodes connected by explicit, typed data edges. Each node performs a single transformation. Execution flows from node to node, exposing every step to inspection because every input and output is explicit.

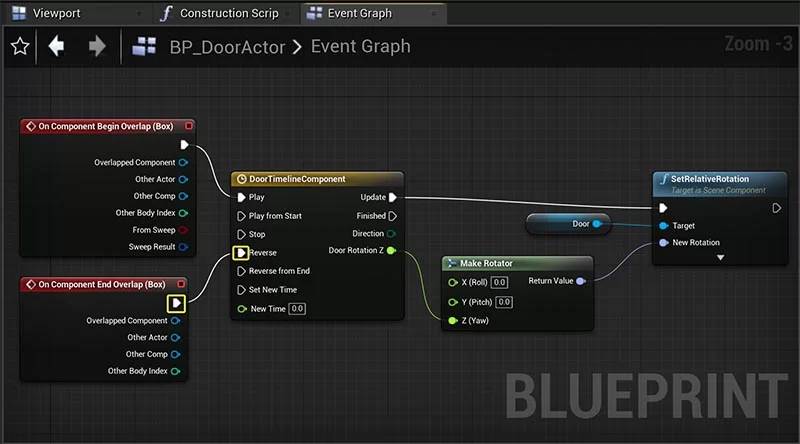

Visual editors like ComfyUI, Unity Shader Graph, and Unreal's Blueprints have used node-based execution for years. Applying this pattern to AI systems turns observability into a structural safeguard against output degradation.

The Rules

Graph engineering succeeds when you constrain the system along three axes.

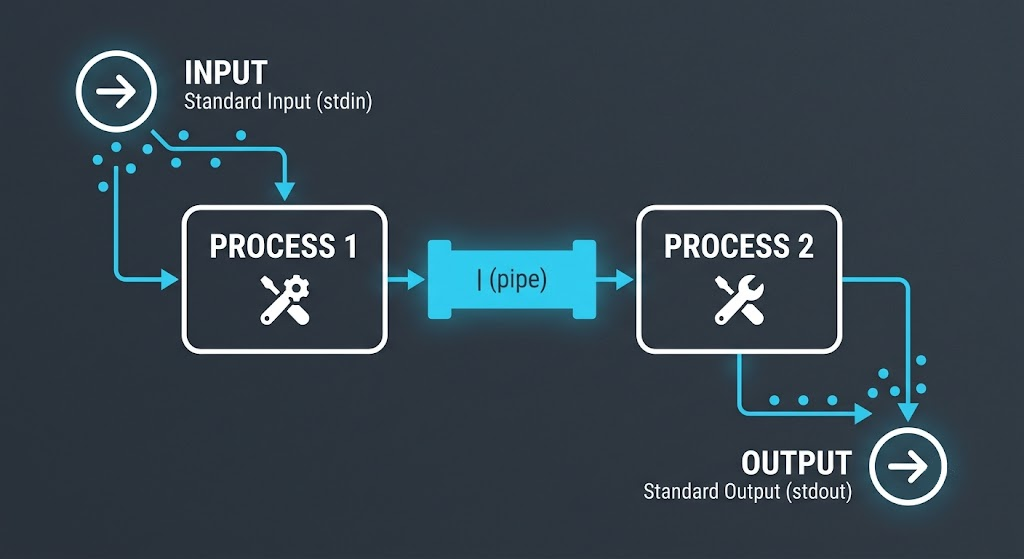

1. Limit your primitives. Restrict what can flow across an edge. Unix restricted I/O to string streams passed through pipes, making components reusable across arbitrary pipelines. When edges carry only a few well-defined types, nodes become interchangeable.

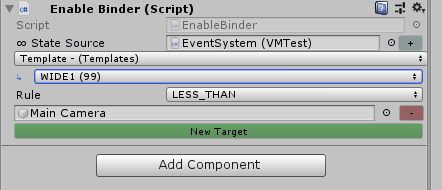

2. Abstract your processes. Write nodes to operate on primitive types rather than domain-specific structures. I scaled an MVVM architecture by giving technical artists visual binders that connected exclusively to floats and bools. The artists daisy-chained those primitive binders into complex animations. Strict constraints forced creative compositions.

3. Observe every edge. Graph architectures make observability native rather than additive. Instead of parsing separate log files, you inspect edge states directly. Placing judgment nodes between action nodes creates self-correcting feedback loops that score downstream results.

Restrict edge types, standardize node boundaries, and compose nodes into predictable systems.

Right Model, Right Job

Reserve frontier models for nodes requiring deep reasoning. Stripping whitespace from JSON requires execution speed, while risk analysis demands cognitive depth. Graph architectures match inference cost directly to task complexity.

I used this approach in Making Small Models Scale: delegate work downward to smaller models until output degrades, then promote back up. That strategy cuts token spend tenfold without sacrificing output quality.

Graph Workflow Patterns

The graph acts as a simple map that lets the system customize its work. It breaks tasks into clear steps, shows how those steps connect, and sets checks to score and improve results.

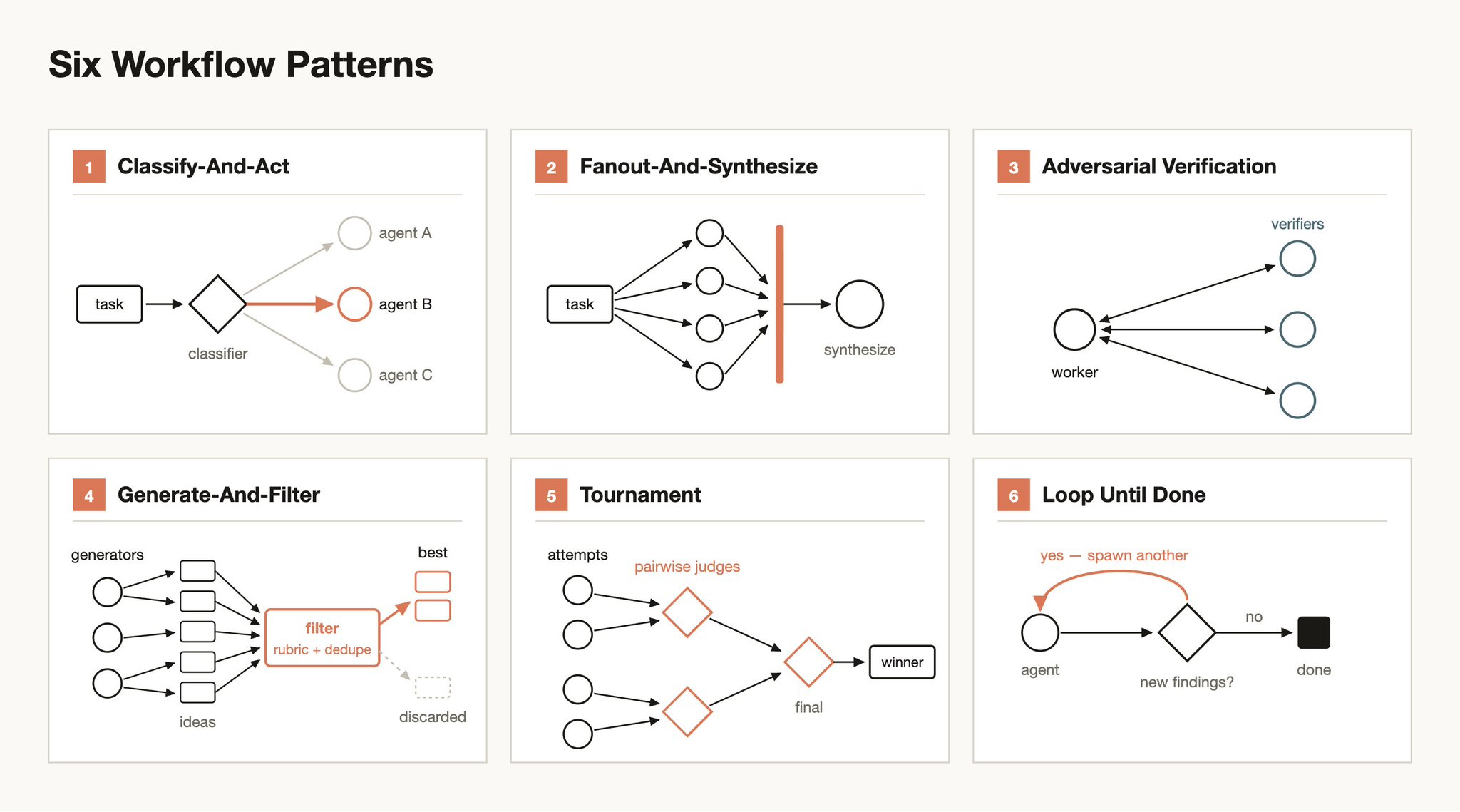

Anthropic's new workflows in Claude Code use this design. The system builds its own step-by-step process as it runs. It creates smaller helper tasks, sends work to the right place, and checks its own answers by breaking tasks into smaller pieces, testing for mistakes, and comparing different options. Instead of just holding instructions in memory, the plan turns into running code that builds itself.

Production Architectures

Social Media System

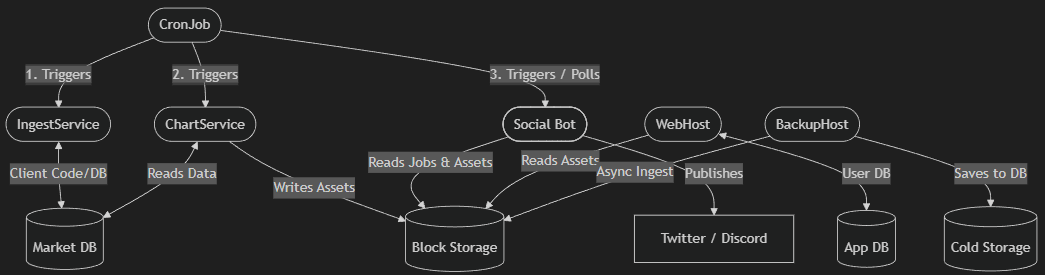

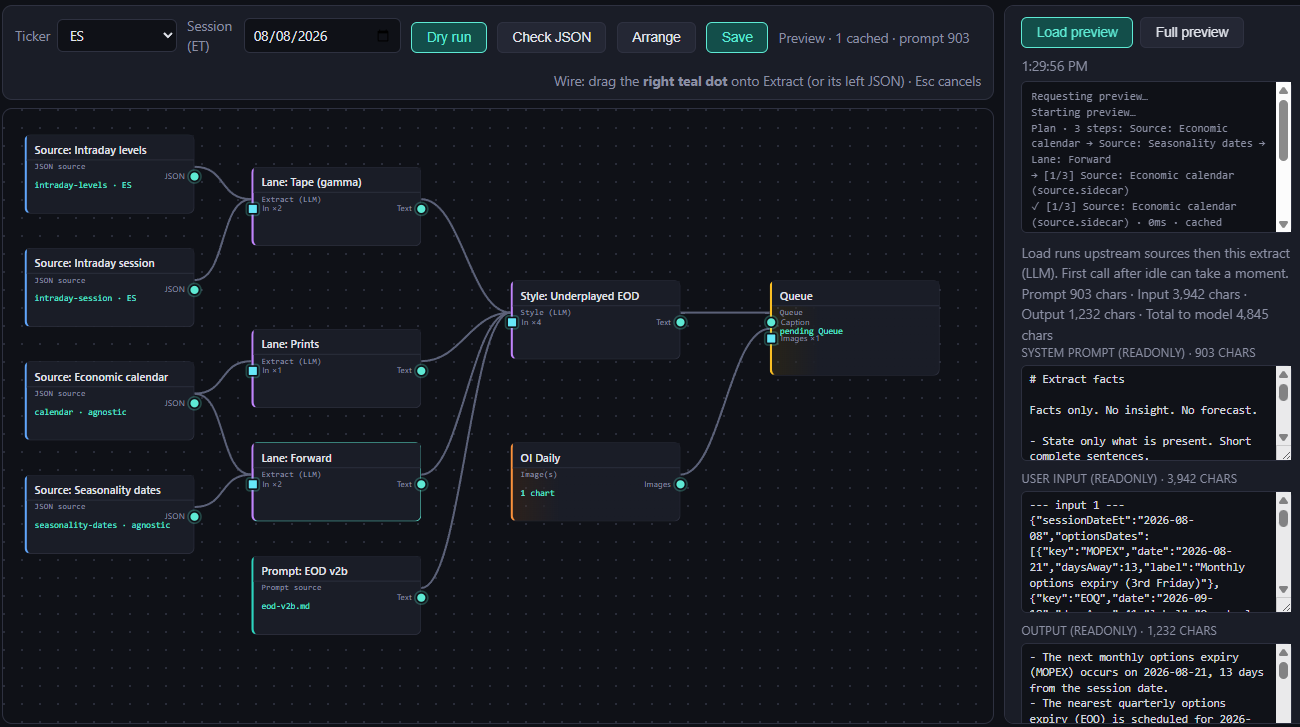

I built a social publishing pipeline around Gamma chart snapshots. Input nodes extract raw chart metrics, downstream filter nodes discard noise, and judge nodes rank chart relevance for the day. Synthesis nodes apply brand tone, attachment nodes bind generated images, and publishing nodes dispatch to social networks. Every transformation stays visible at the edge level.

Trading System

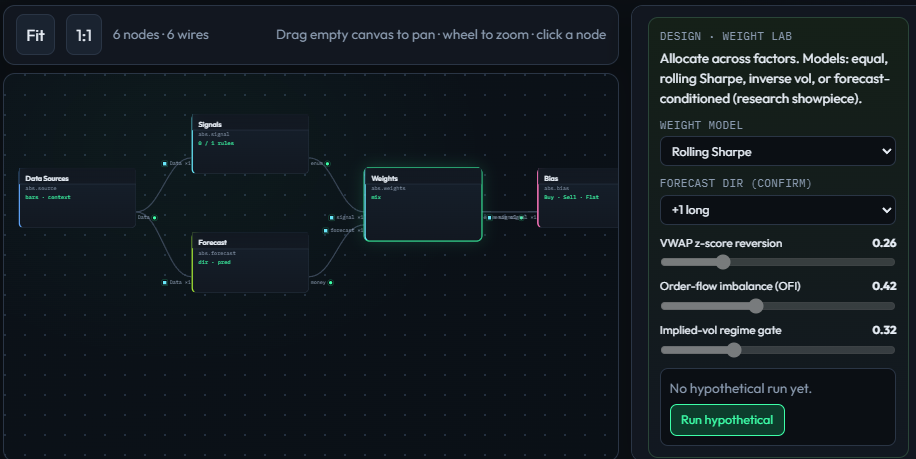

I built an automated trading system driven by an agent graph. Signal nodes evaluate market indicators, forecast nodes predict direction, and risk nodes calculate trade sizes. If market forecasts turn negative, safety nodes halt execution. Explicit edges make every step inspectable, showing exactly which signal triggered an order or blocked a trade.
